Advanced Features

This section covers powerful features such as actor queuing, state saving, multiplayer replication, and debugging tools.

Queuing System

The plugin supports multiple actors waiting for a free entry point.

How it works

  1. If all entry points are occupied, incoming actors are added to the queue.
  2. When a spot frees up, the next actor is triggered.

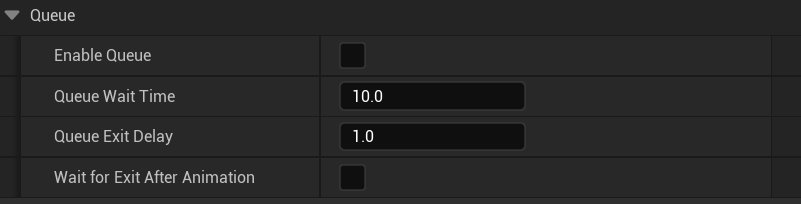

Settings

  • Enable Queue — turns the queue system on.
  • Queue Wait Time — how long an actor can wait before being auto-removed.
  • Queue Exit Delay — delay between previous actor exiting and next one starting.
  • Wait For Exit After Animation — ensures the next actor only enters after the previous actor fully leaves the trigger zone.

SCREENSHOT

Events

  • OnQueueEnter — actor was added to the queue.
  • OnQueueExit — actor left the queue (either to animate or by timeout).

You can also receive these via ATZCharacterInterface.

📌 Queuing only works when Use Entry Points is enabled.

Saving and Loading State

The plugin includes built-in support for persistent trigger states.

Use Case

  • Prevent an actor from re-triggering a zone across save games.
  • Preserve the queue and entry assignments.

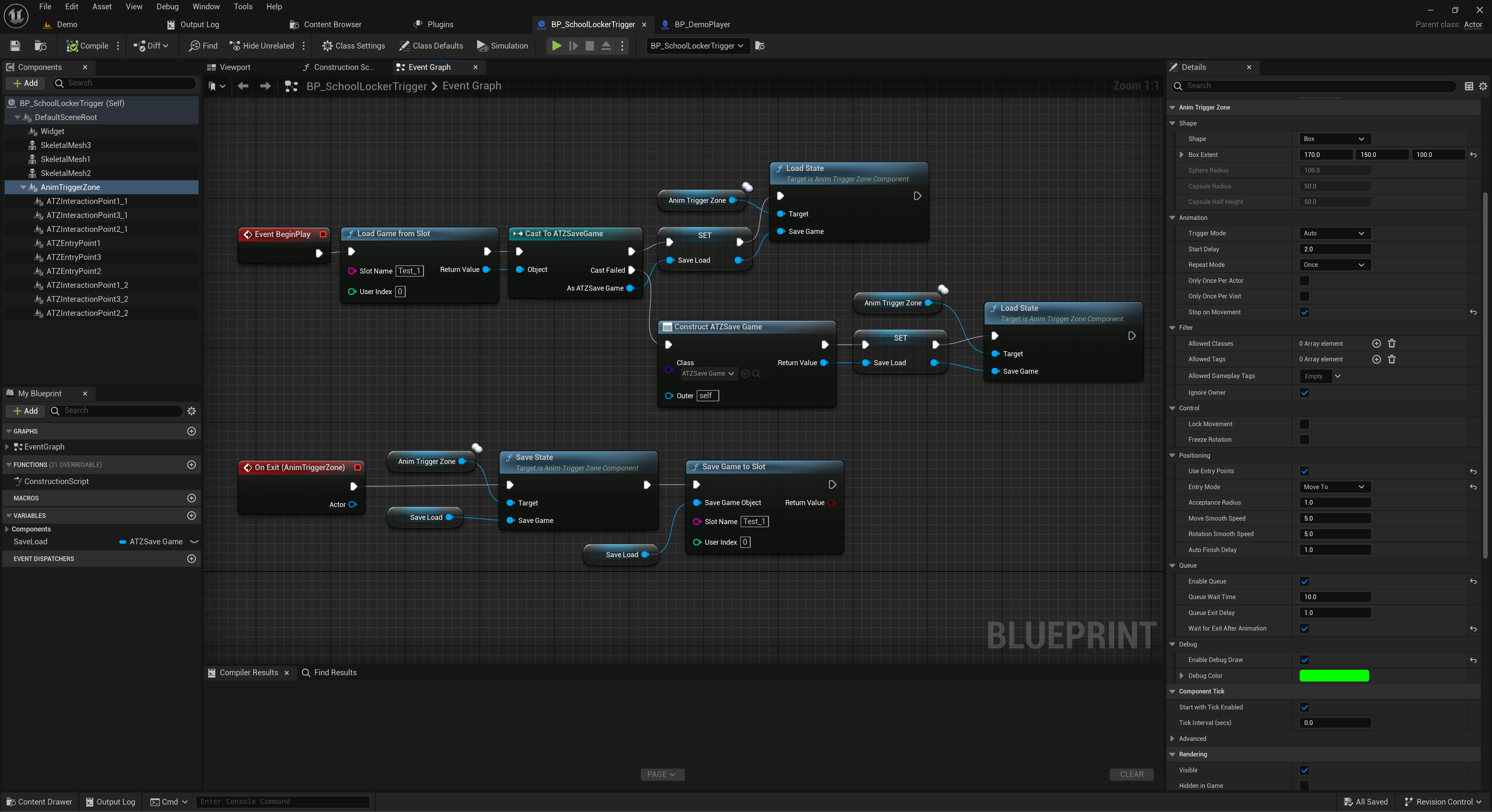

How to use

  1. Create a Blueprint or C++ SaveGame class using ATZSaveGame.
  2. Before saving: blueprint Call → Zone Component → Save State (SaveGameObject)
  3. After loading: blueprint Call → Zone Component → Load State (SaveGameObject)

Each zone stores its state under its full path name.

SCREENSHOT

Multiplayer & Replication

The AnimTriggerZone component is fully network-replicated.

  • Zone state, animation triggering, and interaction events are synchronized.
  • Server-side authority is required to trigger most actions.

📌 Ensure the owning actor is also set to replicates and is placed properly in the level.

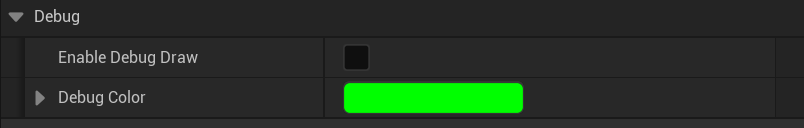

Debug Visualization

You can enable zone visualization during play for easier testing.

  • Enable Debug Draw — turns on runtime drawing.
  • Debug Color — the color of the zone shape and points.

SCREENSHOT

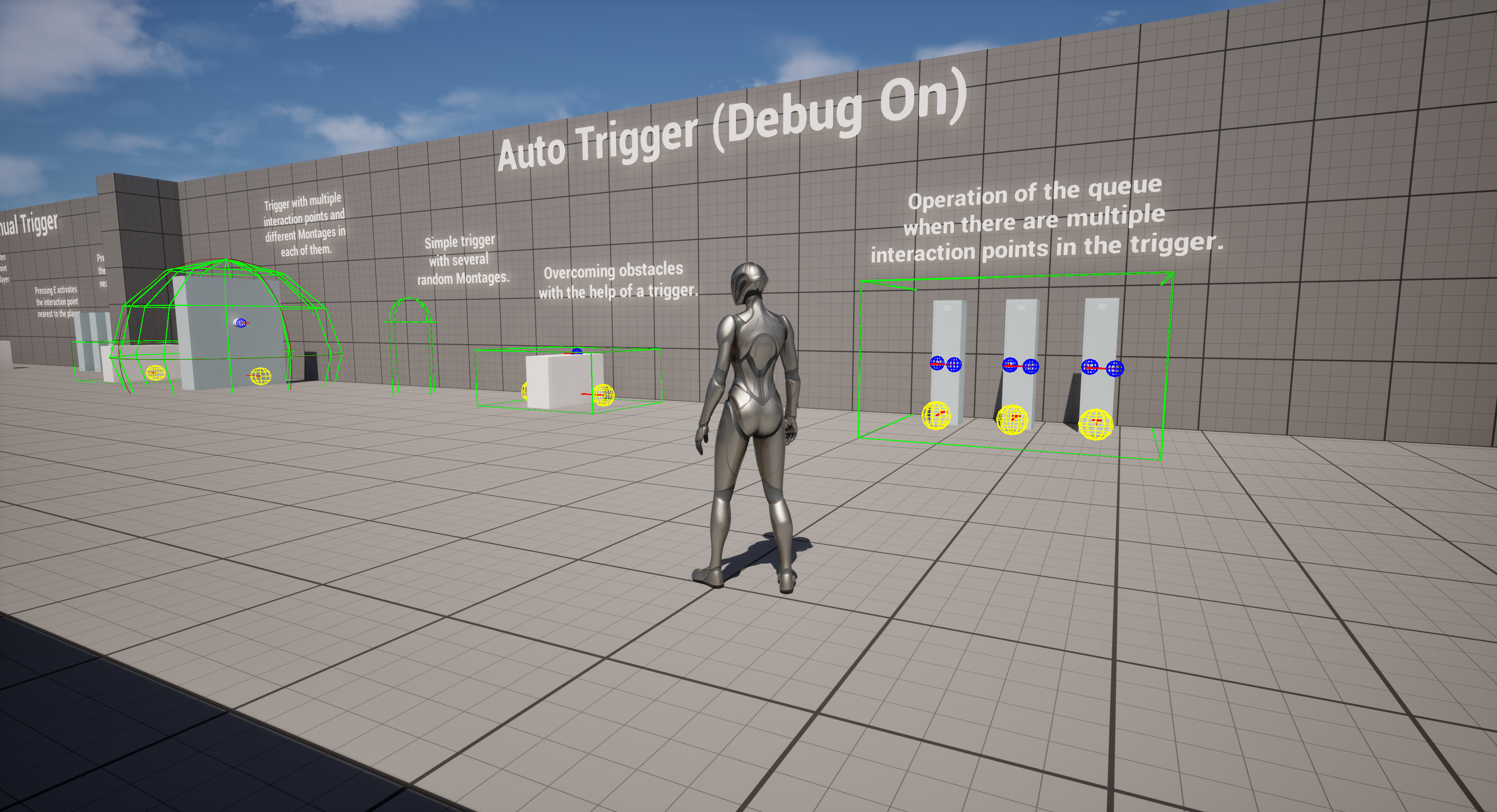

What is visualized

  • The zone shape (box/sphere/capsule)
  • Entry points (yellow spheres with red arrows)
  • Interaction points (blue spheres)
  • The currently selected entry (cyan marker)

SCREENSHOT

➡️ You’ve completed the full guide. You’re ready to create rich animation-based interactions using Blueprints only!
